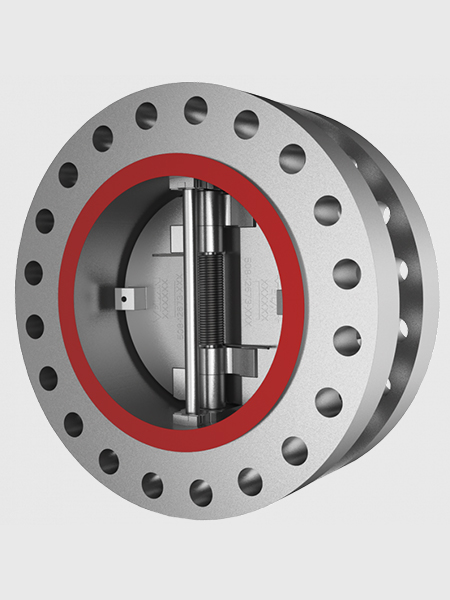

Check Valves Dual Plate
DUAL PLATE CHECK VALVES WAFER TYPE/FLANGED ENDS Model No.SE-12
Features
- STARTEK Dual Plate Check Valves conform to API 6D-ISO 14313/API 5941API .
- Flanged connections to A SME B 16.5 RF / RTJ, API 605, API MSS SP 44, A SME B 16.47
- Flangeless (Wafer Style)
- Lug (Drilled or Threaded)
- Buttweld
- Hub ends (for clampjoints)
- Pressure ratings to ASME B 16.34 class 150(PN 20) through 2500(PN 420) and API pressure class 2000PSI through 10000PSI and class 125(for cast iron valves) Resilient or metal to metal seating
- One piece body configuration provides reduced weight and size. This results savings in initial cost, space and pipe support element installation
- Retainer less body design
- Lapped body/disc seats
- Shock bumpers on discs
- Hinge type design eliminating rattling effect
- Body ends with uninterrupted gasket surface
- No fugitive emissions
- Soft Seated
