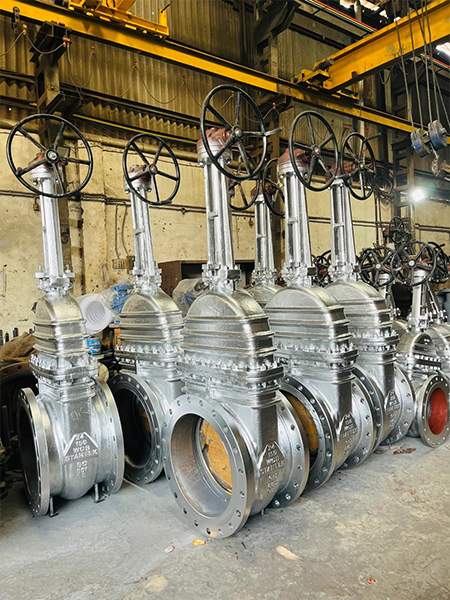

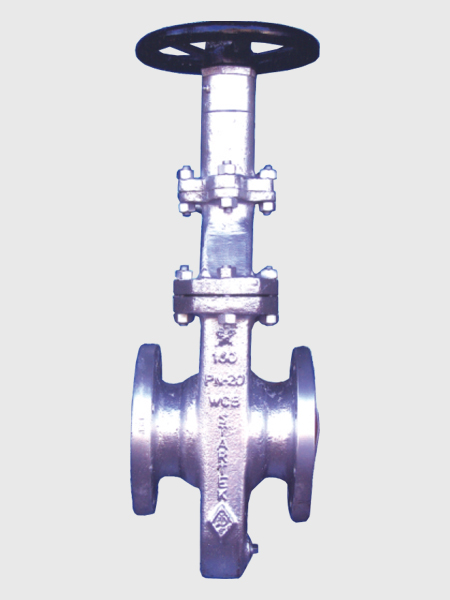

Gate Valves API 6D
Model No.SE-06
Features
- STARTEK Valves have been designed to meet the requirements of API-6D ISO 14313 /ASME B16.34
- Face to Face and End to End dimensions conform to ASME B16.10 /ISO 5752/ BS 2080/ DIN
- End flange dimensions conform to ASME B16.5/1S0 7005-1 /API 6051BS 3293/DIN
- Butt weld end dimensions conform to ASME B16.25
- Slab type gate to avoid jamming associated with wedge gate
- Pressure energized floating seat rings with PTFE inserts
- Weather proof operating system
- Through conduit piggable passage
- Easy maintenance with valve in-line
- Anti-frictional Ball bearings are provided in higher sizes and classes
- Outside screw and yoke construction
- All the valves provided with backseat arrangement
- Bi-directional shut-off
- Deep stuffing box
- Body ports are streamlined, permitting unobstructed flow, reduces turbulence, results in lower pressure drop and lower erosion
- The Body to Bonnet joint is flat M ISO PN 20 / ASME 150# valves, a male and female joint is used in PN 501300# & PN 110/600# and ring joint is used in higher classes
- Specially designed die formed graphite packing, controlled clearance between stem,
Option
- For low temperature and cryogenic services (cold box and non-cold box applications) extended bonnet as per BS 6364 available
- Locking arrangement
- Gear, Electrical, Hydraulic or Pneumatic actuator available
Materials
| Part Name | Material Option | |
|---|---|---|
| Body | ASTMA 216 WCB /A217 WC6 IA217 WC9 /A217 C5 /A217 C12 /A351 CFA /A351 CF8M /A 351 CF3 / A351 CF3M /A352 / LCB | |
| Bonnet | ASTMA 216 WCB /A217 WC6IA 217 WC9 /A217 C5 /A217 C121A 351 CF8 /A351 CF8M /A 351 CF3 /A 351 CF3M /A 352 LCB | |
| Gate | ASTMA 216 WCB /A217 WC6 /A 217 WC9 /A217 C5 /A217 C121A351 CFA /A351 CF8MIA 351 CF3 /A 351 CF3M /A 352 LCB/ A 217 CA15 | |
| Yoke | ASTMA 216 WCB /A217 WC6IA 217 WC9 /A217 C5 /A217 C12/ A351 CF8 /A351 CF8 M /A351 CF3 /A 351 CF3M /A 352 LCB | |
| Stem | ASTM A 276 410 /A 276 304 /A 276 304L / A 276 316L | |
| Seat Rings' | ASTMA 216 WCB /A217 WC6 /A 217 WC9 /A217 C5 /A217 C12 /A 351 CF8 /A351 CF8MIA 351 CF3 /A 351 CF3M /A352 LCB /A217 CA15 | |
| Seat Insert | PTFE / VITON | |
| '0' Ring | VITON | |
| Back Seat Bushing | ASTM A 276 410 /A 276 304 /A 276 304L / A 276 316L Spring 304, 316 | |
| Gland Nut | ASTM A 276 4101 A 276 304 /A 276 304L / A 276 316L | |
| Stem Nut | ASTM A 439 Gr.D2/Al. Bronze | |
| Lock Nut | Carbon Steel l SS 304 | |
| Gland Packing | Chevron Ring / Graphoil / PTFE | |
| Bonnet Gasket | SS 3041Graphoil | |
| Gland Eye - Bolt & Nut | Carbon Steel / Stainless Steel | |
| Cross Bolts & Nuts | Carbon Steel / Stainless Steel | |
| Hand Wheel | Carbon Steel / M.1 / S. | |
| Stem Enclosure | Carbon Steel | |
| Hand Wheel Nut | Carbon Steel | |
| Stem Indicator | Carbon Steel | |
| Drain Plug | Stainless Steel | |
| Anti-friction Bearing | Standard | |
| Grease Nipple | Stainless Steel | |
| Grub Screw | Carbon Steel | |
| Studs/Bolts | ASTMA 193 B7 /A 193 B7M /A 193 BBM 1A320 L7 | |
| Nut | ASTMA 1942H /A194 8 /A194 8M /A 1944 / 7 |
